- Pressure : 25kg / cm2g
- Seal : 16kg / cm2g
- Maximum Working Temperature : 220 °C
- Use : Water
| 1/2” | 3/4” | 1” | |
| DN | 15 | 20 | 25 |
| A | 57 | 62 | 67 |
| B | 29 | 37 | 44.50 |
| C | 51 | 54 | 62 |
| D | 104 | 121 | 121 |
| E | 14 | 19 | 24 |
| F | 16 | 16 | 16 |
| AF | 24.50 | 32 | 37.50 |
| No | Qty. | Parts Name | Description | Material |
| 1 | 1 | Body | Forged, Nickelplated | CW617N |
| 2 | 1 | Adaptor Nut | Forged, Nickelplated | CW617N |
| 3 | 1 | Ball | Polished, Chromeplated | CW617N |
| 4 | 2 | Seat Ring | Virgin Powder | PTFE |
| 5 | 1 | Steam | Brass | CW617N |
| 6 | 1 | Seal Ring | Virgin Powder | PTFE |
| 7 | 1 | Nut | Nickelplated | CW617N |
| 8 | 1 | Lock Nut | Nickelplated | CW617N |
| 9 | 1 | Lever Handle | Dacromet Coated | ALUMINIUM |

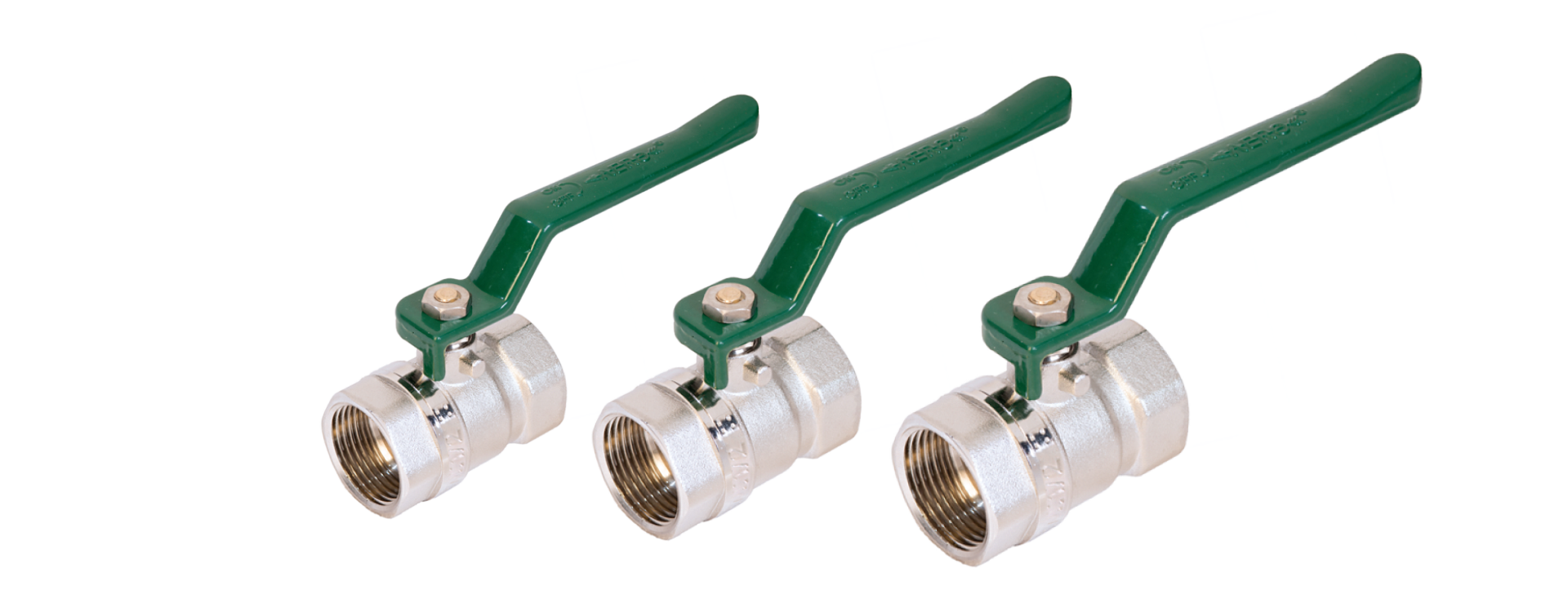

Commercial Ball Valve
Heavy Brass Ball Valve

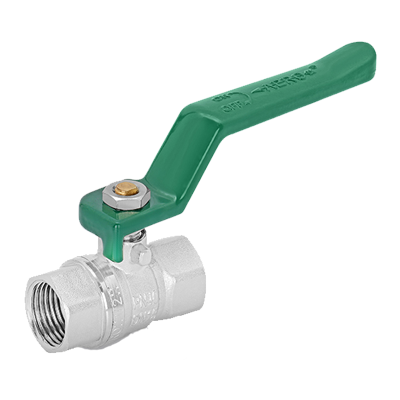

Brass M/F Ball Valve
